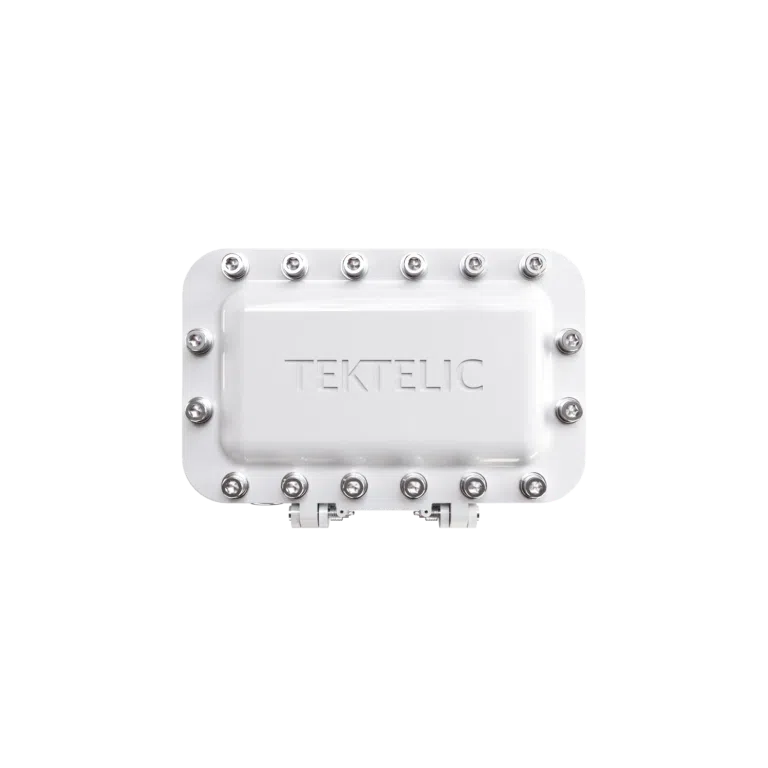

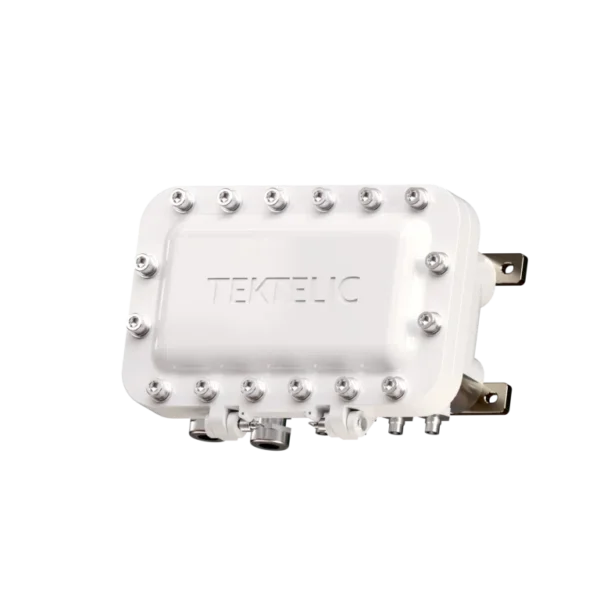

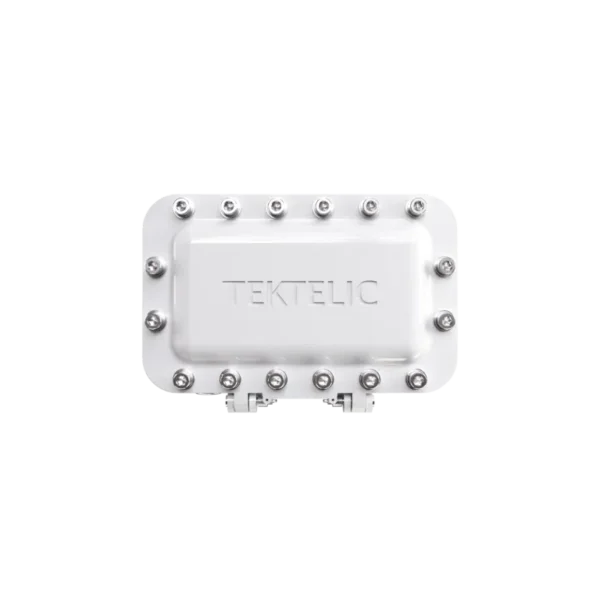

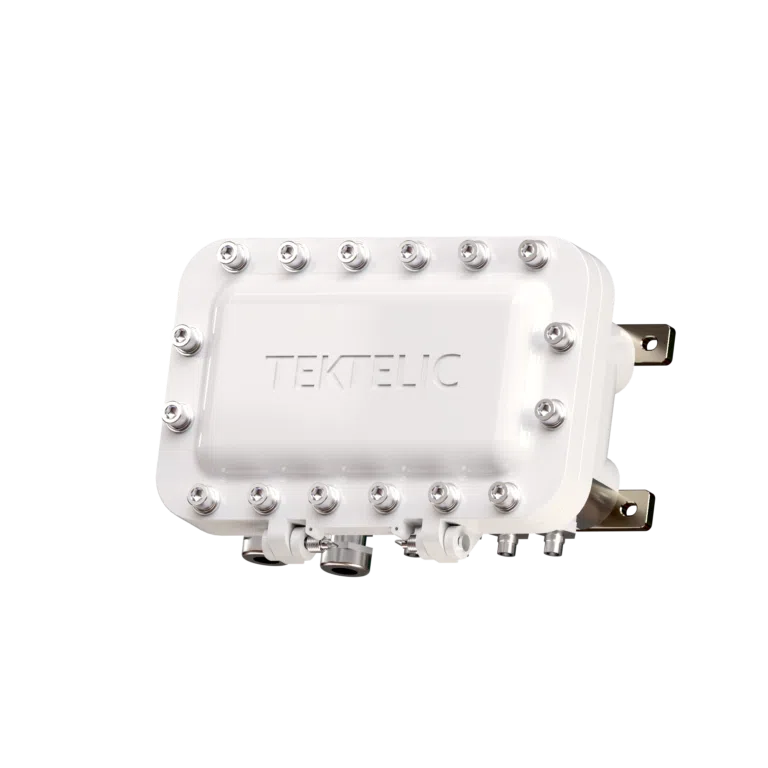

Kona Macro EX Outdoor Gateway ATEX Zone 1

Description

Kona Macro EX Gateway ATEX Zone 1 / Div 1 Certified 16-Channel LoRaWAN® Gateway for Hazardous Industrial Deployments

KFT0009061 – LoRa Gateway Module, Kona Macro EX, EU
KFT0007469 – Antenna, 860–930 MHz, 6 dBi, with mounting kit
KF T0005315 – RF Cable, N Male to N Female, 1/2″ SupeRFlex, 2M
KITT0005671 – PoE Passive Injector Indoor EU

Works Best for

Designed for industries operating in high-risk, hazardous environments that demand a rugged and ATEX Zone 1 / Div 1 – certified LoRaWAN® gateway. Its carrier-grade design ensures reliable, long-range connectivity in challenging RF conditions.

Reliable Connectivity in Hazardous Environments

Designed for safety and performance, KONA Macro Ex delivers stable, interference-resistant LoRaWAN® communication in explosive-prone environments. Its ATEX Zone 1 / Div 1 certification, adaptive cavity filter, and advanced radio design make it the ideal solution for ensuring safety, compliance, and efficiency in industrial networks.

MAIN FEATURES

Frequency Duplex 16 Rx / 2 Tx (NA)
Time Duplex 16 Rx / 2 Tx (Int.)
Custom TEKTELIC ATEX Zone 1 (Div 1) Design
Integrated Highly Selective and Adaptive Cavity Bandpass Filters
Enhanced Radio Design built for Low Noise Figure, Low LO Phase Noise, and Digital Signal to Noise optimization
Ethernet and 3G/4G cellular backhaul utilizing high quality, globally certified cellular modems
Full Featured Operations, Administration and Management Tools for remote Gateway management
Simple onboarding with LeapX App

TECHNICAL CHARACTERISTICS

Ingress Protection IP66
Antenna N-Type with Integrated 10kA Surge Protection
Dimension 352 x 247 x 158 mm
Weight 15 kg
RF Sensitivity -142 dBm (SF12, 293 bits/sec)
All Global ism bands
TX power 27 dBm

Differentiations

Custom Enclosure design specifically optimized for airflow, heat dissipation, and cable management of a highly reliable Carrier-Grade LoRaWAN Gateway.
Can be deployed directly onsite where gases, vapors, or combustible dusts may be presentю.
Supports regulatory requirements for ATEX Zone 1 / Div 1 certified sites.
Remote management reduces operational costs of site visits to Zone 1 certified locations.
Carrier-Grade radio design improves signal reception in challenging RF environments, extending the coverage area and ensuring reliable communication with distant or weakly transmitting devices in the LoRaWAN network.
